MNE: Source estimation and localization
Author: Hadi Zaatiti hadi.zaatiti@nyu.edu
A Boundary Element Model (BEM) is a computational model used primarily in the field of neuroimaging, especially in magnetoencephalography (MEG) and electroencephalography (EEG), to help solve the forward problem, which involves calculating the electric or magnetic fields generated by neuronal activity in the brain at the sensors located on the scalp.
The NYUAD MRI lab will provide the MRI T1w scans of the participant, with segmentation of the different parts of the brain and different volumetry and other freesurfer analysis.
An example of such data is available under NYU BOX, https://nyu.box.com/v/meg-datafiles Access the directory: Box\MEG\Data\resting-state\sub-01\anat
Requirements: Having ran mne kit2fiff and mne coreg as explained previously
Generating the BEM
We will now compute and plot the BEM model for the participant. Set the freesurfer SUBJECTS_DIR to Box\MEG\Data\resting-state\sub-01\anat\outputs\PostFreeSurfer\T1w\Sub-0037 where Sub-0037 is the MRI ID of the subject.
Note that the ID in MEG for a participant are different than the ID in MRI.
Generate the head surfaces files using the command
mkheadsurf -subjid sub-0037You should see the following output
INFO: log file is /home/USERNAME/freesurferproject/subjects//sub-0037/scripts/mkheadsurf.log
--------------------------------
Wed May 8 15:15:41 +04 2024
/home/USERNAME/freesurferproject/subjects/sub-0037
mri_seghead --invol /home/USERNAME/freesurferproject/subjects//sub-0037/mri/T1.mgz --outvol /home/USERNAME/freesurferproject/subjects//sub-0037/mri/seghead.mgz --fill 1 --thresh1 20 --thresh2 20 --nhitsmin 2 --rescale --fill-holes-islands
--------------------------------
input volume: /home/USERNAME/freesurferproject/subjects//sub-0037/mri/T1.mgz
output volume: /home/USERNAME/freesurferproject/subjects//sub-0037/mri/seghead.mgz
threshold1: 20
threshold2: 20
nhitsmin: 2
fill value: 1
Loading input volume
Changing type, rescale = 1, fhi=0.999
Filling Columns
Filling Rows
Filling Slices
Merging
nhits = 2546749
Removing islands
MRIremoveVolumeIslands() thresh=0.5, nKeep=1, nclusters = 35
Removing Volume Holes
MRIremoveVolumeHoles() thresh=0.5, nKeep=1
MRIremoveVolumeIslands() thresh=0.5, nKeep=1, nclusters = 1
Filling axial Slice Holes
ostr LIA
slicedir 6 slicediruse 2
slicedim 256 1 256
MRIremoveSliceHodes() removed 35899 voxels
Filling sag Slice Holes
ostr LIA
slicedir 4 slicediruse 1
slicedim 1 256 256
MRIremoveSliceHodes() removed 3538 voxels
Filling cor Slice Holes
slicedir 2 slicediruse 2
slicedim 256 1 256
MRIremoveSliceHodes() removed 0 voxels
Counting
N Head Voxels = 2585413
N Back Voxels = 14191803
Avg. Back Intensity = 1.097717
Max. Back Intensity = 205.000000
Writing output
Done
constructing final surface...
(surface with 291644 faces and 145822 vertices)...done
computing the maximum edge length...1.414214 mm
reversing orientation of faces...
checking orientation of surface...
0.000 % of the vertices (0 vertices) exhibit an orientation change
counting number of connected components...
145822 voxel in cpt #1: X=0 [v=145822,e=437466,f=291644] located at (1.178080, 5.080982, -25.954636)
For the whole surface: X=0 [v=145822,e=437466,f=291644]
One single component has been found
nothing to do
writing out surface...done
--------------------------------
Wed May 8 15:15:59 +04 2024
/home/USERNAME/freesurferproject/subjects/sub-0037
mris_smooth -n 10 -nw /home/USERNAME/freesurferproject/subjects/sub-0037/surf/lh.seghead /home/USERNAME/freesurferproject/subjects/sub-0037/surf/lh.seghead
--------------------------------
smoothing for 10 iterations
smoothing surface tessellation for 10 iterations...
smoothing complete - recomputing first and second fundamental forms...
Started at: Wed May 8 15:15:41 +04 2024
Ended at: Wed May 8 15:16:01 +04 2024
mkheadsurf done
The command will generate the head segmentation file mri\seghead.mgz
We will now generate the boundary for the brain, the inner skull and outer skull and skin
mne watershed_bem --subject sub-0037
You should the following output
Running mri_watershed for BEM segmentation with the following parameters:
Results dir = /home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed
Command = mri_watershed -useSRAS -surf /home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed/sub-0037 /home/USERNAME/freesurferproject/subjects/sub-0037/mri/T1.mgz /home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed/ws
Running subprocess: mri_watershed -useSRAS -surf /home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed/sub-0037 /home/USERNAME/freesurferproject/subjects/sub-0037/mri/T1.mgz /home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed/ws
Mode: use surfaceRAS to save surface vertex positions
Mode: Saving out BEM surfaces
*********************************************************
The input file is /home/USERNAME/freesurferproject/subjects/sub-0037/mri/T1.mgz
The output file is /home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed/ws
*************************WATERSHED**************************
Sorting...
T1-weighted MRI image
modification of the preflooding height to 15 percent
Count how many 110 voxels are present : 263997
Find the largest 110-component...
heap usage = 468888 Kbytes.
removing small segments (less than 1 percent of maxarea).done
And identify it as the main brain basin...done
Main component: 244657 voxels
first estimation of the COG coord: x=125 y=137 z=127 r=70
first estimation of the main basin volume: 1464330 voxels
global maximum in x=113, y=115, z=93, Imax=255
CSF=15, WM_intensity=110, WM_VARIANCE=5
WM_MIN=110, WM_HALF_MIN=110, WM_HALF_MAX=110, WM_MAX=110
preflooding height equal to 15 percent
done.
Analyze...
main basin size= 1453495 voxels, voxel volume =1.000
= 1453495 mmm3 = 1453.495 cm3
done.
PostAnalyze...
***** 0 basin(s) merged in 1 iteration(s)
***** 0 voxel(s) added to the main basin
done.
****************TEMPLATE DEFORMATION****************
second estimation of the COG coord: x=127,y=140, z=126, r=9052 iterations
^^^^^^^^ couldn't find WM with original limits - expanding ^^^^^^
GLOBAL CSF_MIN=0, CSF_intensity=5, CSF_MAX=19 , nb = 43452
Problem with the least square interpolation in GM_MIN calculation.
CSF_MAX TRANSITION GM_MIN GM
GLOBAL
before analyzing : 19, 37, 59, 76
after analyzing : 19, 51, 59, 57
mri_strip_skull: done peeling brain
highly tesselated surface with 10242 vertices
matching...66 iterations
*********************VALIDATION*********************
curvature mean = -0.014, std = 0.011
curvature mean = 67.170, std = 7.285
No Rigid alignment: -atlas Mode Off (basic atlas / no registration)
before rotation: sse = 5.20, sigma = 8.02
after rotation: sse = 5.20, sigma = 8.02
Localization of inacurate regions: Erosion-Dilation steps
the sse mean is 5.43, its var is 7.01
before Erosion-Dilatation 1.89% of inacurate vertices
after Erosion-Dilatation 0.00% of inacurate vertices
Validation of the shape of the surface done.
Scaling of atlas fields onto current surface fields
********FINAL ITERATIVE TEMPLATE DEFORMATION********
Compute Local values csf/gray
Fine Segmentation...41 iterations
mri_strip_skull: done peeling brain
Brain Size = 1454766 voxels, voxel volume = 1.000 mm3
= 1454766 mmm3 = 1454.766 cm3
outer skin surface matching...119 iterations
******************************
Saving /home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed/ws
done
mri_watershed done
error: unknown file type for file (/home/USERNAME/freesurferproject/subjects/sub-0037/bem/watershed/ws)
Overwriting existing file.
Overwriting existing file.
Overwriting existing file.
Overwriting existing file.
Symbolic links to .surf files created in bem folder
Thank you for waiting.
The BEM triangulations for this subject are now available at:
/home/USERNAME/freesurferproject/subjects/sub-0037/bem.
outer skin CM is 1.20 -0.97 -16.05 mm
Surfaces passed the basic topology checks.
Created /home/USERNAME/freesurferproject/subjects/sub-0037/bem/sub-0037-head.fif
Complete.
You should see the following files in your subject directory
the brain boundary
bem\brain.surfthe inner skull boundary
bem\inner_skull.surfthe outer skull boundary
bem\outer_skull.surfthe outer skin boundary
bem\outer_skin.surf
A sub-0037-head.fif file should be generated aswell in the bem folder. Note that for MEG, the inner skull boundary would be enough to do source localization and estimation. However, for EEG 3 layers (inner skull, outer skull, and skin) are typically used. Let us now plot the boundaries that we generated using MNE.

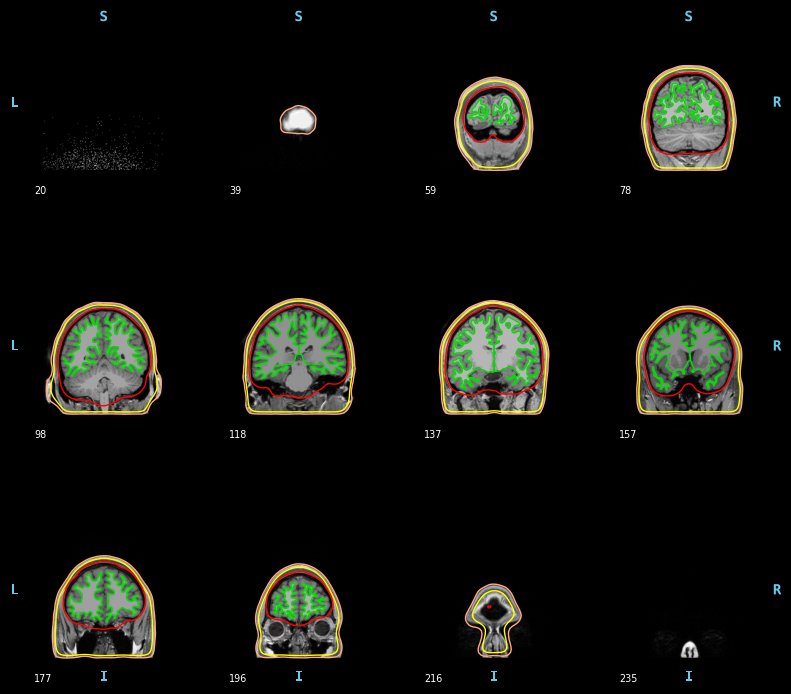

Plotting the BEM for visual inspection
Let us now plot the boundaries that we generated using MNE
[1]:
%matplotlib inline
import mne
[2]:
fif_path = r'C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\Sub-0037\bem\sub-0037-head.fif'
# Load the BEM surfaces from the generated .fif file
bem_surfaces = mne.read_bem_surfaces(fif_path)
# Plot the BEM surfaces
mne.viz.plot_bem(subject='sub-0037',
subjects_dir=r'C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w',
brain_surfaces='white',
src=None,
orientation='coronal')
1 BEM surfaces found
Reading a surface...
[done]
1 BEM surfaces read
Using surface: C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\bem\inner_skull.surf
Using surface: C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\bem\outer_skull.surf
Using surface: C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\bem\outer_skin.surf
C:\ProgramData\mne-python\1.6.1_0\Lib\site-packages\mne\viz\utils.py:165: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
(fig or plt).show(**kwargs)
[2]:
Source localization and estimation
Generating source space, refers to the process of creating a model of where in the brain the magnetic fields are being generated from. This model is essential for solving the inverse problem, which involves estimating the neuronal activity that causes the measured magnetic fields on the scalp.
[3]:
import mne
subject='sub-0037'
subjects_dir=r'C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w'
source_space = mne.setup_source_space(subject,spacing='ico4',subjects_dir=subjects_dir)
source_space.save(subjects_dir+'/%s/bem/%s-ico4-src.fif' %(subject,subject), overwrite=True)
Setting up the source space with the following parameters:
SUBJECTS_DIR = C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w
Subject = sub-0037
Surface = white
Icosahedron subdivision grade 4
>>> 1. Creating the source space...
Doing the icosahedral vertex picking...
Loading C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\surf\lh.white...
Mapping lh sub-0037 -> ico (4) ...
Triangle neighbors and vertex normals...
Loading geometry from C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\surf\lh.sphere...
Setting up the triangulation for the decimated surface...
loaded lh.white 2562/126910 selected to source space (ico = 4)
Loading C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\surf\rh.white...
Mapping rh sub-0037 -> ico (4) ...
Triangle neighbors and vertex normals...
Loading geometry from C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\surf\rh.sphere...
Setting up the triangulation for the decimated surface...
loaded rh.white 2562/128713 selected to source space (ico = 4)
Calculating source space distances (limit=inf mm)...
Computing patch statistics...
Patch information added...
Computing patch statistics...
Patch information added...
You are now one step closer to computing the gain matrix
Overwriting existing file.
Write a source space...
[done]
Write a source space...
[done]
2 source spaces written
We will now load and visualise the source space together with the BEM model
[4]:
src = mne.read_source_spaces(subjects_dir+'/%s/bem/%s-ico4-src.fif' %(subject,subject))
# Plot the bem with the sources
mne.viz.plot_bem(subject=subject, subjects_dir=subjects_dir,brain_surfaces='white',
src=src, orientation='coronal')
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
Reading a source space...
Computing patch statistics...
Patch information added...
Distance information added...
[done]
2 source spaces read
Using surface: C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\bem\inner_skull.surf
Using surface: C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\bem\outer_skull.surf
Using surface: C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\bem\outer_skin.surf
C:\ProgramData\mne-python\1.6.1_0\Lib\site-packages\mne\viz\utils.py:165: UserWarning: FigureCanvasAgg is non-interactive, and thus cannot be shown
(fig or plt).show(**kwargs)
[4]:
[5]:
## Create the bem solution.
conductivity = (0.3,) # for single layer
bem_model = mne.make_bem_model(subject=subject,ico=4,conductivity=conductivity,subjects_dir=subjects_dir)
Creating the BEM geometry...
Going from 5th to 4th subdivision of an icosahedron (n_tri: 20480 -> 5120)
inner skull CM is 0.92 -2.09 -11.14 mm
Surfaces passed the basic topology checks.
Complete.
[6]:
# Load the BEM surfaces from the generated .fif file
#bem_model = mne.read_bem_surfaces(fif_path)
#Make solutions
bem = mne.make_bem_solution(bem_model)
mne.write_bem_solution(subjects_dir+'/%s/bem/%s-inner-skull.bem.fif' %(subject,subject),bem, overwrite=True)
Homogeneous model surface loaded.
Computing the linear collocation solution...
Matrix coefficients...
inner skull (2562) -> inner skull (2562) ...
Inverting the coefficient matrix...
Solution ready.
BEM geometry computations complete.
Overwriting existing file.
[7]:
bem = mne.read_bem_solution(subjects_dir+'/%s/bem/%s-inner-skull.bem.fif' %(subject,subject))
Loading surfaces...
Loading the solution matrix...
Homogeneous model surface loaded.
Loaded linear collocation BEM solution from C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\anat\outputs\PostFreeSurfer\T1w\sub-0037\bem\sub-0037-inner-skull.bem.fif
We now have the necessary input to compute the forward solution operator. (Bear in mind that this will compute an operator and not apply it to the measurements to get the source time series.)
[8]:
fwd = mne.make_forward_solution(r'C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\meg\Sub-0037\sub-01_01-eyes-closed-raw.fif',
trans=r'C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\meg\%s\%s-trans.fif' %(subject,subject),
src=src,
bem=bem,
meg=True,
eeg=False,
ignore_ref=True)
mne.write_forward_solution(r'C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\meg\%s\%s-fwd.fif' %(subject,subject),
fwd,
overwrite=True,
verbose=None)
Source space : <SourceSpaces: [<surface (lh), n_vertices=126910, n_used=2562>, <surface (rh), n_vertices=128713, n_used=2562>] MRI (surface RAS) coords, subject 'sub-0037', ~22.2 MB>
MRI -> head transform : C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\meg\sub-0037\sub-0037-trans.fif
Measurement data : sub-01_01-eyes-closed-raw.fif
Conductor model : instance of ConductorModel
Accurate field computations
Do computations in head coordinates
Free source orientations
Read 2 source spaces a total of 5124 active source locations
Coordinate transformation: MRI (surface RAS) -> head
0.999060 0.005683 0.042983 -0.24 mm
-0.013875 0.981144 0.192780 10.85 mm
-0.041076 -0.193195 0.980300 67.10 mm
0.000000 0.000000 0.000000 1.00
Read 207 MEG channels from info
105 coil definitions read
Coordinate transformation: MEG device -> head
0.990440 -0.137012 0.016000 -1.48 mm
0.126928 0.950617 0.283226 26.76 mm
-0.054016 -0.278488 0.958920 64.19 mm
0.000000 0.000000 0.000000 1.00
MEG coil definitions created in head coordinates.
Source spaces are now in head coordinates.
Employing the head->MRI coordinate transform with the BEM model.
BEM model instance of ConductorModel is now set up
Source spaces are in head coordinates.
Checking that the sources are inside the surface (will take a few...)
Checking surface interior status for 2562 points...
Found 918/2562 points inside an interior sphere of radius 47.5 mm
Found 0/2562 points outside an exterior sphere of radius 91.3 mm
Found 0/1644 points outside using surface Qhull
Found 0/1644 points outside using solid angles
Total 2562/2562 points inside the surface
Interior check completed in 498.4 ms
Checking surface interior status for 2562 points...
Found 858/2562 points inside an interior sphere of radius 47.5 mm
Found 0/2562 points outside an exterior sphere of radius 91.3 mm
Found 0/1704 points outside using surface Qhull
Found 0/1704 points outside using solid angles
Total 2562/2562 points inside the surface
Interior check completed in 534.4 ms
Checking surface interior status for 207 points...
Found 0/207 points inside an interior sphere of radius 47.5 mm
Found 207/207 points outside an exterior sphere of radius 91.3 mm
Found 0/ 0 points outside using surface Qhull
Found 0/ 0 points outside using solid angles
Total 0/207 points inside the surface
Interior check completed in 27.5 ms
Composing the field computation matrix...
Computing MEG at 5124 source locations (free orientations)...
Finished.
Write a source space...
[done]
Write a source space...
[done]
2 source spaces written
The number of modeled sources are 5124, there is 2562 source in each hemisphere
[10]:
mag_map = mne.sensitivity_map(fwd, ch_type='mag',mode='free')
mag_map.save(r'C:\Users\hz3752\PycharmProjects\mne_bids_pipeline\data\meg\%s\%s_sensitivity-free' %(subject,subject), overwrite=True)
207 out of 207 channels remain after picking
Writing STC to disk...
Overwriting existing file.
Overwriting existing file.
[done]
[ ]:
brainmap = mag_map.plot(time_label='Magnetometer Sensitivity', subjects_dir=subjects_dir,clim=dict(lims=[0,50,100]),hemi='split')
We can now visualise the sensitivity map on both hemispheres
[ ]:
[ ]:
